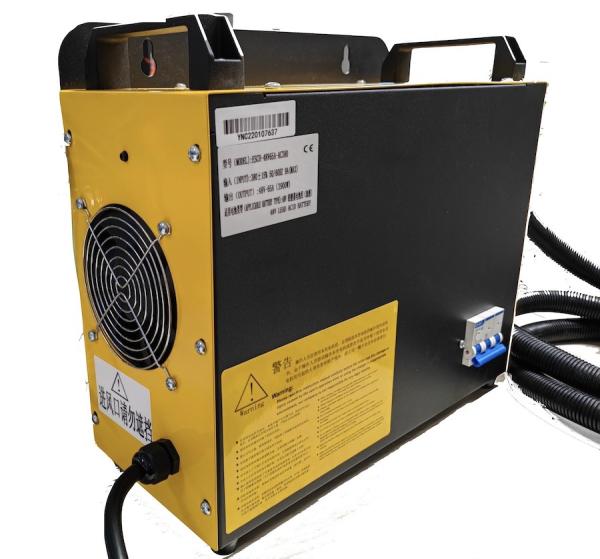

Single Chip Microcomputer High Frequency Battery Charger ESCH48V/65A 48v 65A

Product Categories

LAKER AUTOPARTS CO.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Single Chip Microcomputer High Frequency Battery Charger ESCH48V65A 48v 65A
Brand: PROLAKER
Price: 1 USD

Brand Name : PROLAKER

Model Number : ESCH48V/65A

Certification : ISO9001,UL,CE,CEC

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 500000pcs per month

Delivery Time : 7 to 15days after order confirmation and deposit

Packaging Details : Cartons, Standard wooden pallet

Type : High Frequency Battery Charger

Application : Forklift Truck

Model : ESCH48V/65A

Technology : Single Chip Microcomputer (SCM)

Max Output current : 65A

Max output power : 3965A

Dimension : 386*169*360mm

Max efficiency : 97%

Contact Now

High-Frequency Industrial Battery Charger

Application: Fork Lift(48v)

Model Name: ESCH48V/65A

Product Parameters

Model	ESCH48V/65A
Dimensions (mm)	Long * wide * high: 386169360 (mm)
Output maximum current (A)	65
Maximum power point (W)	4000
Input voltage (VAC)	380V±15% Three phase three wire +safe ground wire
Output voltage (VDC)	Lead-acid battery:63V; VRLA:60V;(Customizable)
Applicable battery voltage	48V lead-acid battery pack, (Customizable, Lithium battery optional)
Maximum efficiency	97%
Output voltage regulation precision	±1%
Output current accuracy	±1%
Working temperature	-30℃～-45℃
Classes of seismic measure	SAEJ1378
Cooling mode	Airblast cooling
Over-temperature protection	75℃±5
Input under-voltage protection (VAC)	<284~304
Output over-voltage protection (VDC)	65V±1
Output over-current protection (A)	>110%*Maximum charge current
Output short circuit protection	When the output is short-circuited, charger shutdown and automatic recovery after short-circuiting is solved.
Battery reverse protection	Charger shutdown and alarm when the wire is connected reversely, it will automatically resume after wiring correctly.

Product Specification

Charger integrates active power factor correction(PFC), can achieve zero pollution of the power grid and avoid the impact of large current grid；
Wide range of AC input voltage, strong adaptability；
The module has the perfect protection function such as input over-voltage, lack of input, output over current, over voltage output, output short circuit, output isolation protection, module overheating and so on；
The full-bridge phase-shifted soft switch PWM the latest mixed-mode control, to overcome the traditional phase-shifted full-bridge circuit circulation loss, working conditions of diode side faults, secondary-side diodes to achieve soft recovery, the module can achieve high efficiency over a wide input voltage range and the maximum load range. Efficiency;
Close to 97%, the electromagnetic interference is greatly reduced, and the volume weight is greatly reduced;
Improved thermal design, more uniform heat distribution;
The use of a more complete circuit board dust, moisture-proof treatment;
(high-frequency battery charger, high power battery charger)
