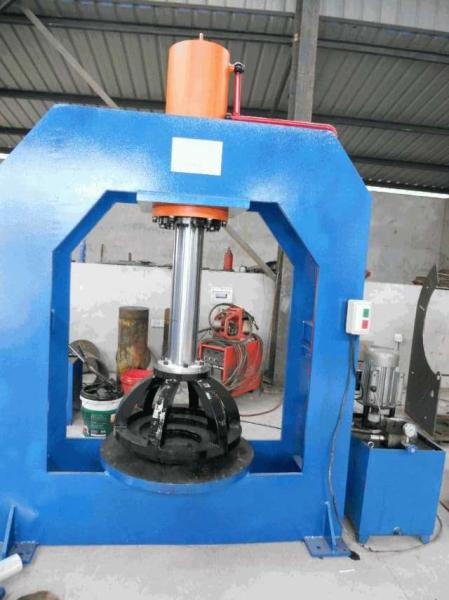

6.00X9 Forklift Tire Press Hydraulic Machine With High Pressure Relief Valve
| Model | TP80 |
| Capacity | 80Ton |
| Motor | 3KW |
| Max Tire Rim | 8inch |
Product Introduction
Professional equipment for amending or replacing solid tires or OTR tires.
0.8MN solid tyre pressing machine is a special equipment for solid tire loading and unloading,
It can also apply to the tyres below 12 ".
This machine is a frame type structure.The hydraulic cylinder is located above the piston movement from top to bottom, the department. Platform, fixed on the piston rod and spherical pressure box, firm structure, is made of high-quality materials carefully assembled, so good performance. With the electric control box independent.
The hydraulic system of the machine consists of hydraulic system and hydraulic system of the auxiliary machine. This machine hydraulic system is composed of the high-pressure pump, solenoid valve, pressure relief valve, check valve, pressure indicator and oil cylinder.
High pressure relief valve is the oil pressure setting of high pressure pump, its maximum setting value is 15MPa.
Product Features
-
| Model | TP80 |
| Nominal pressure | 0.8 MN |
| Work hydraulic | 12 Mpa |
| Max Tire Size | 12 Inches |
| Max Cylinder Stroke | 570 mm |
| Motor | 3 KW |
| Oil Tank Capacity | 90 L |
| Size | L1420xW600xH1800 mm |
| Weight | 1000 kg |
Customer Satisfaction
Our goal is to allow you to deliver the products that your clients need. To do this, we are committed to manufacturing quality and reliable machinery. Our success is based on our customer's satisfaction, your satisfaction is directly linked towards the quality and reliability of our hydraulic machinery.
